SEC 3100 Logic Interface Module (LIM)

Click image to enlarge

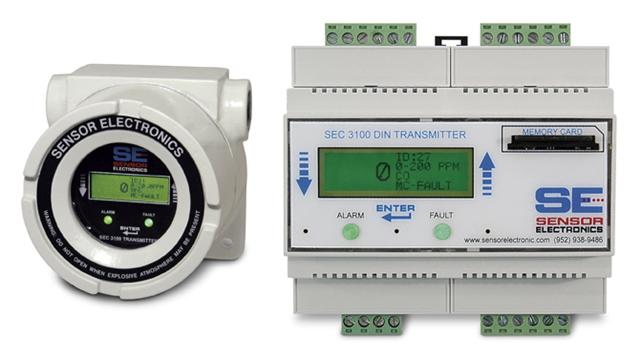

The SEC 3100 LIM is used in conjunction with the SEC toxic and explosive gas detectors, SEC 3100 Universal Transmitter or SEC 3100 DIN Controller gas detection equipment. A non-SEC device with normally open contacts is wired to the SEC 3100 LIM and becomes a part of the SEC hazardous gas detection system. The SEC 3100 LIM receives a Low and High contact closure from the device, converts the input signal into a digital signal compatible with the SEC 3100 transmitter. The SEC 3100 LIM is factory programmed with the following customer supplied variables:

Device Name
Range
Unit of Measure
Calibration Value

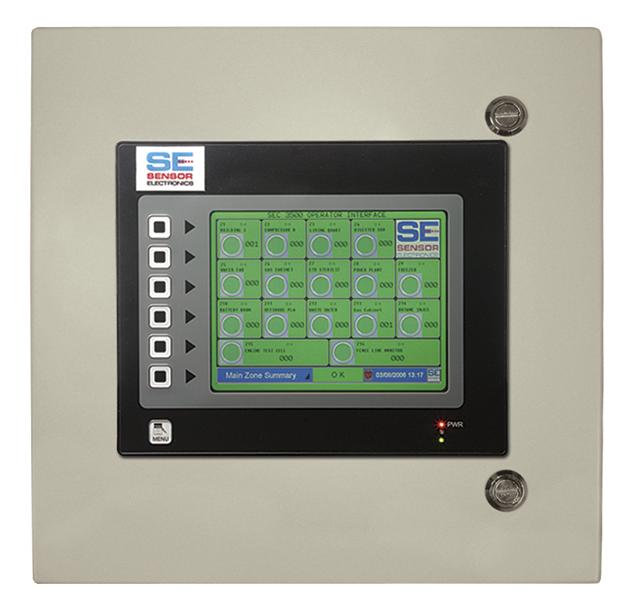

The SEC 3100 LIM visually displays the variables on the LCD the same as if the SEC 3100 had an SEC gas detector connected. The SEC 3100 transmitter reports the foreign device status bidirectional to the SEC 3500 HMI Operator Interface via the MODBUS RS485 communication network. The SEC 3100 LIM can be installed in the SEC 3100 explosion proof transmitter housing using a taller window dome.

The SEC 3100 LIM accepts one device input for Low Alarm and High Alarm. Examples of switch contact devices that can be used with the SEC 3100 LIM are:

Open Path Gas Detectors
Fire Detectors
Temperature Switch
Pressure Switch
Air Flow Switch

Features

Interfaces non-SEC devices to a Modbus network
Accepts low and high alarm input contacts closure
